• Up to 5000Vrms insulation voltage
• Linear supply voltage range of ± 50mV or ± 250mV
• Fixed gain: 8.2 or 41
• Low bias error and temperature drift:
• NSI1300D25: ±0.2mV(Max), -2~4μV/°C(Max)
• NSI1300D05: ±0.1mV(Max), -0.8~1μV/°C(Max)
• Low gain error and temperature drift：
• ±0.3％(Max), ±50ppm /°C(Max)
• Low nonlinearity and temperature drift:
• ±0.04%(Max), ±1ppm /°C(Typ)
• SNR：86dB(Typ, BW = 10kHz), 72dB(Typ, BW = 100kHz)
• Bandwidth: 310kHz(Typ)
• High CMTI：150kV/us(Typ)
• System-level diagnostic functions:
• VDD1 monitoring
• Input common mode overvoltage detection
• Operation temperature: -40°C to 125°C
• AEC-Q100 qualified
• RoHS compliant package:

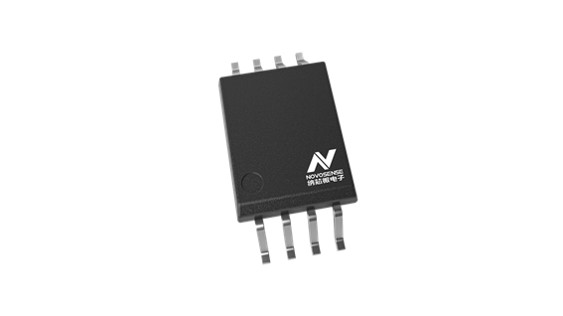

• SOP8(300mil)
• UL1577 qualified 5kVrms for 1 min.
• CQC qualified: Conform to GB4943.1 -2011
• CSA qualified: Components conform to 5A
• VDE qualified: DIN V VDE V 0884-11:2017-01
• Shunt current monitoring
• AC motor control
• Power and PV inverters
• UPS
• Onboard charger
