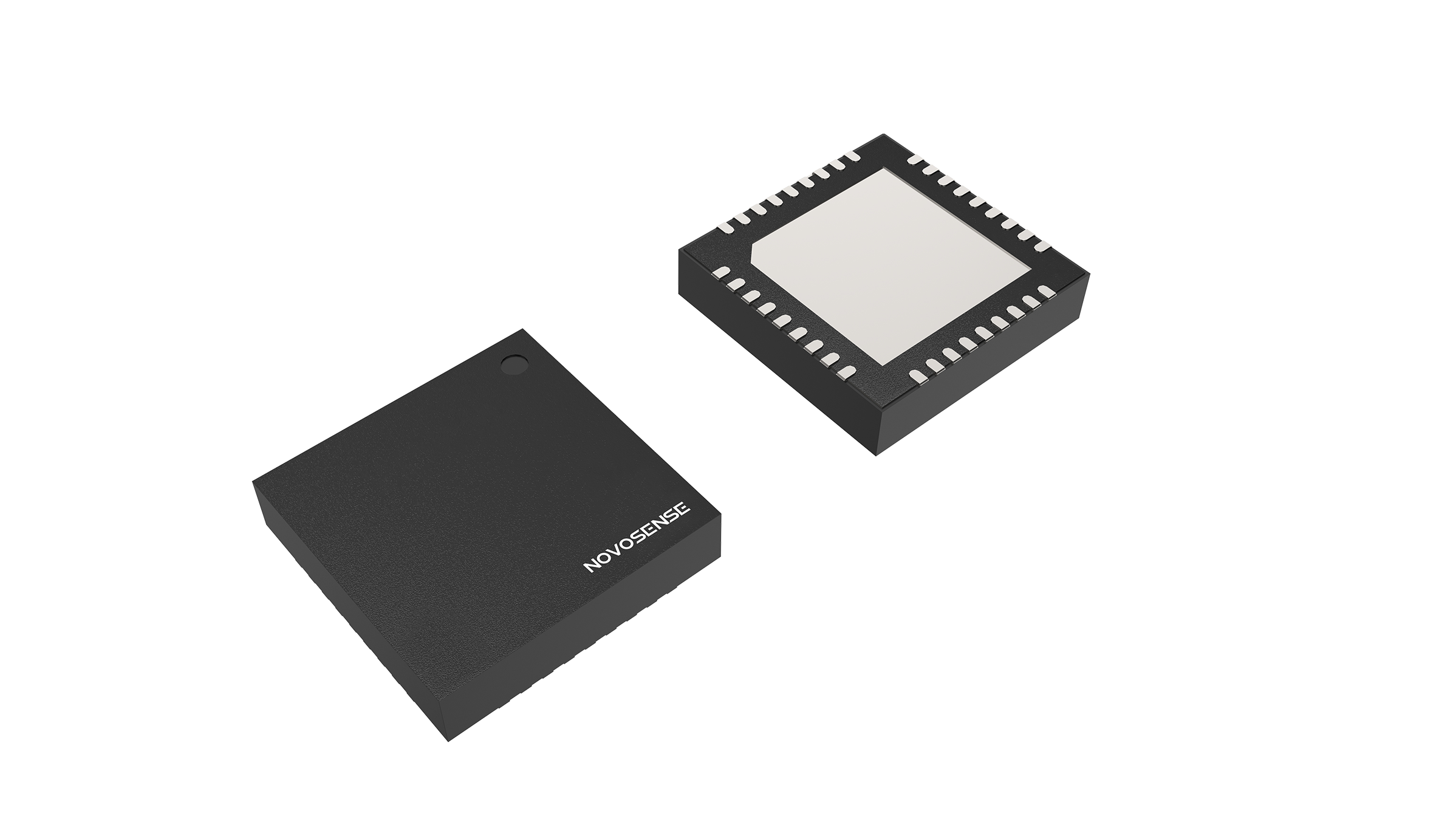

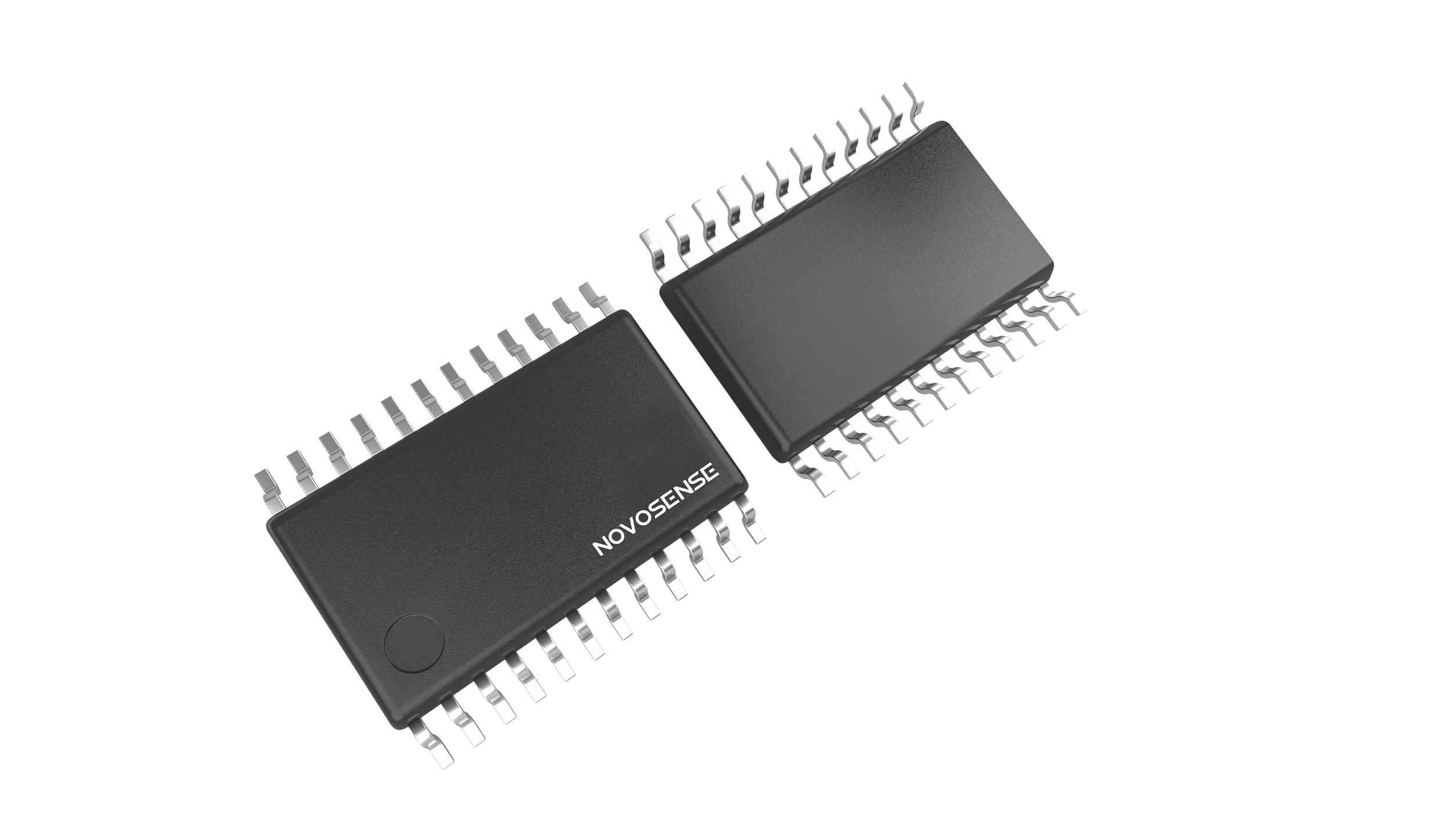

The NSUC1612 is an ARM MCU with integrated 4/3 half-bridge drivers to control low-power DC motors. It can drive DC brushed motors, brush-less motors, stepper motors, etc. And it is widely used in the automotive markets. The chip conforms to the AEC-Q100 standard, and its junction temperature can support up to 150°C. Also, it is integrated with over-voltage protection function, and the LIN port can support -40V~40V, BVDD pin can support -0.3~40V. The core of the chip is Cortex-M3 based on the ARM instruction set. The core adopts Harvard structure and uses independent data bus and address bus, which can improve the efficiency of getting address and data.
Product Features
• ARM Cortex-M3 32bit core
• 32KBytes Flash, 2KBytes SRAM, 2KBytes EEPROM
• 15K ROM Integrated Bootloader based on UDS
• 32MHz high precision oscillator with PLL
• 35KHz Low power and low speed clock
• Operating voltage 5.5V~28V
• One 12-bit high precision ADC
• Two 8-bit current-limiting DACs
• Built-in Back-EMF Comparator (BEMFC)
• One SPI support 3 lines / 4 lines(master)
• One SSI support 3 lines / 4 lines(slave)
• One LINUART peripheral
• LIN PHY module support LIN2.2 & SAE-J2602
• One FlexCAN
• Two 16-bit timers
• One window watchdog
• One digital watchdog
• Four half bridges of outputs
• Six enhanced PWM(16 bit) output
• One 5V output ALDO
• Two temperature sensors
• Four working modes: active, retention, idle and sleep mode
• Sleeping power consumption is less than 50 uA with all range of temperature
• AEC - Q100 Grade 1 reliability standard
• ROHS & REACH
Application
• Automotive water valve
• Automotive expansion valve
• Automotive air conditioning pendulum
• DC brush-less motor control
• DC brush motor control
• Stepper motor control
• Automotive Smart Actuators

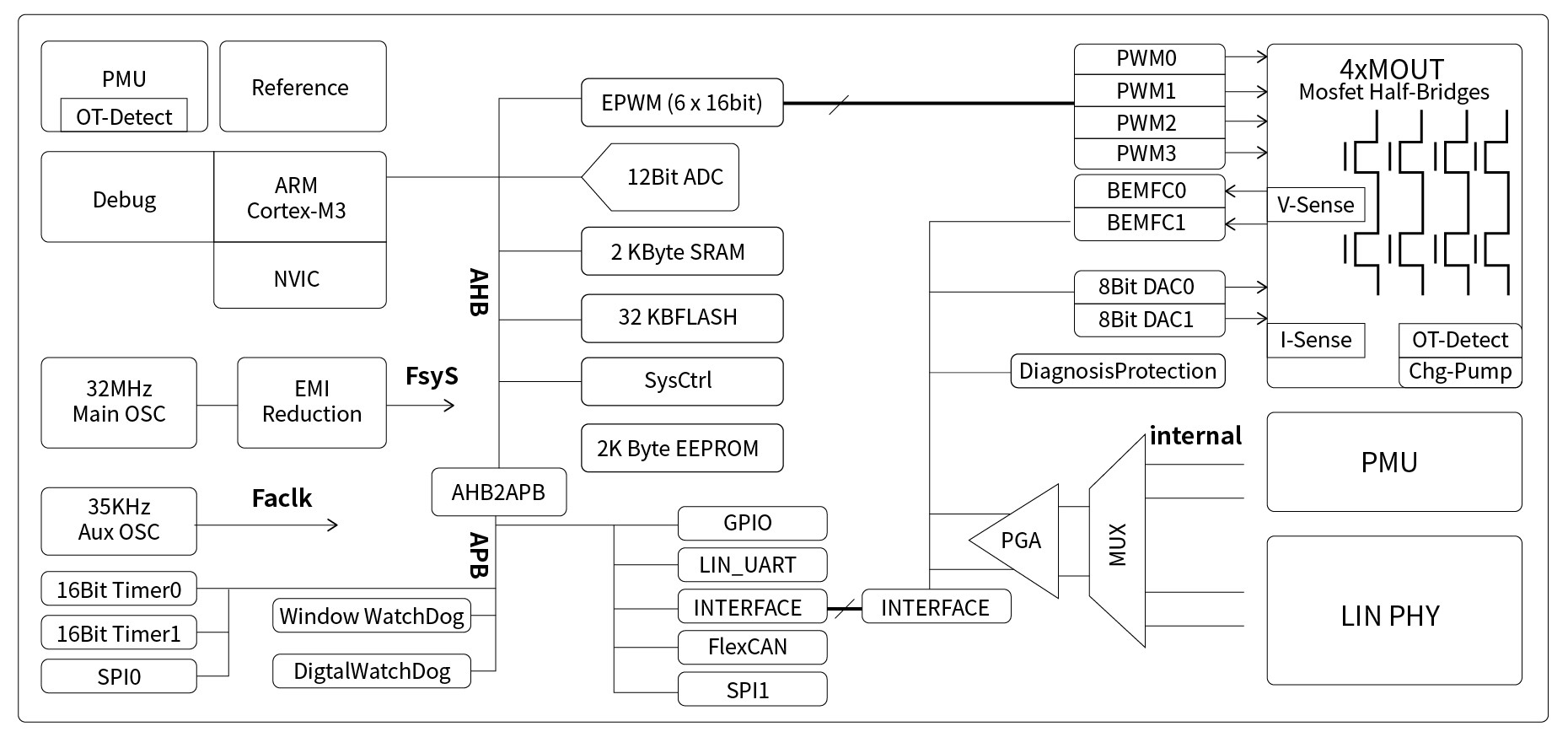

Functional Block Diagram
For more product information, please contact us.
